Wheel Hub Assemblies: The Invisible Engine Driving Safety and Performance

In modern automotive engineering, Wheel Hub Assemblies play a vital role. They are one of the key components to ensure a smooth, safe ride and overall performance of the vehicle.

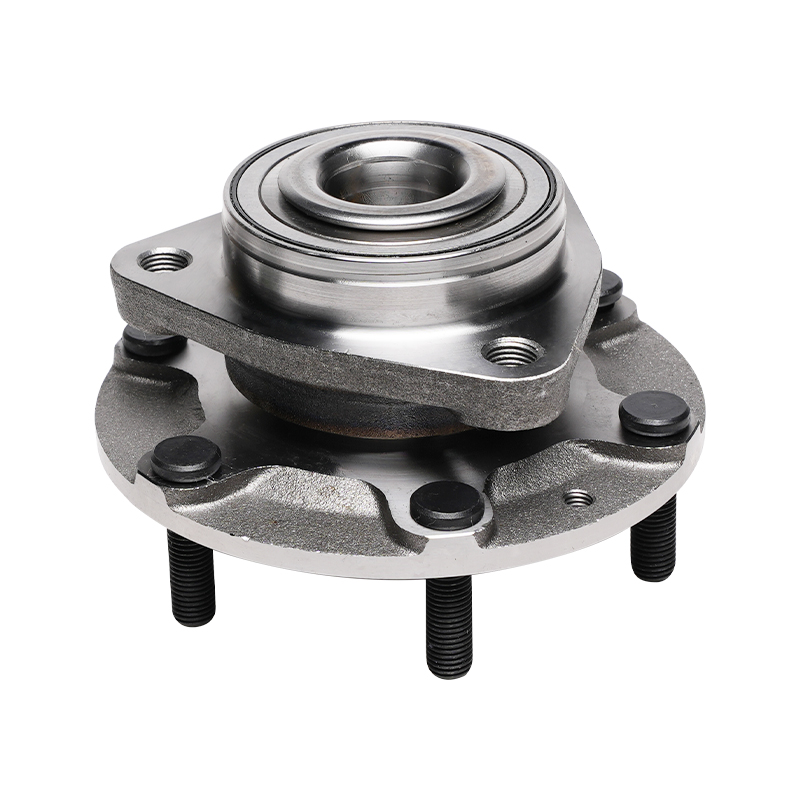

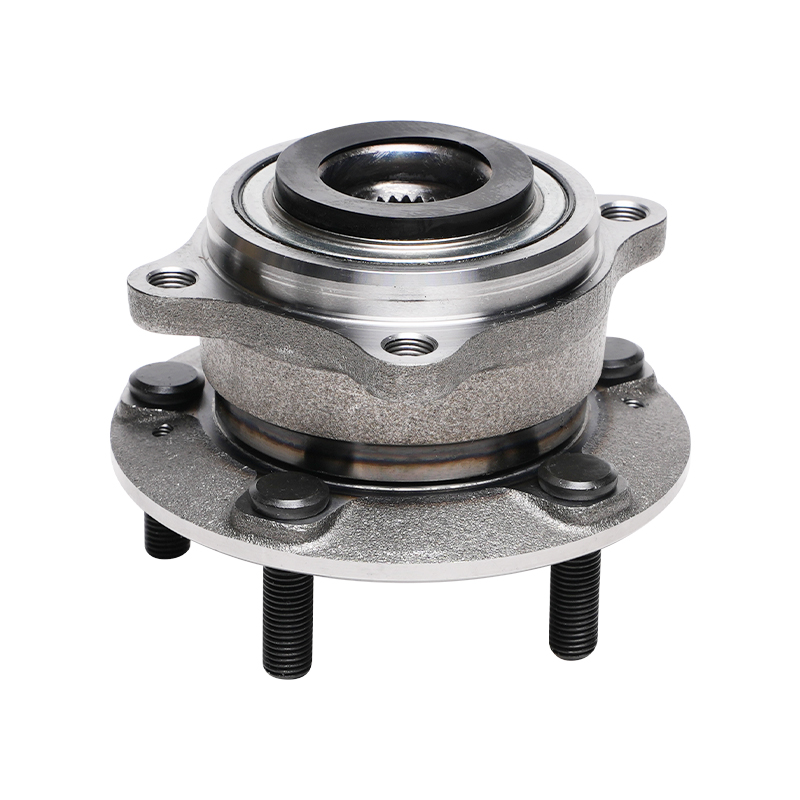

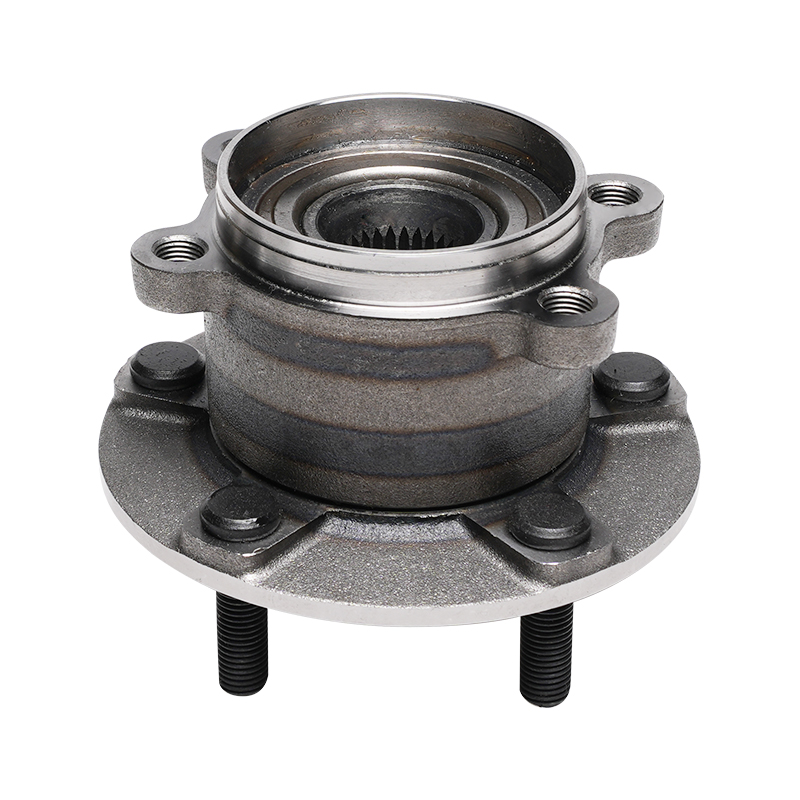

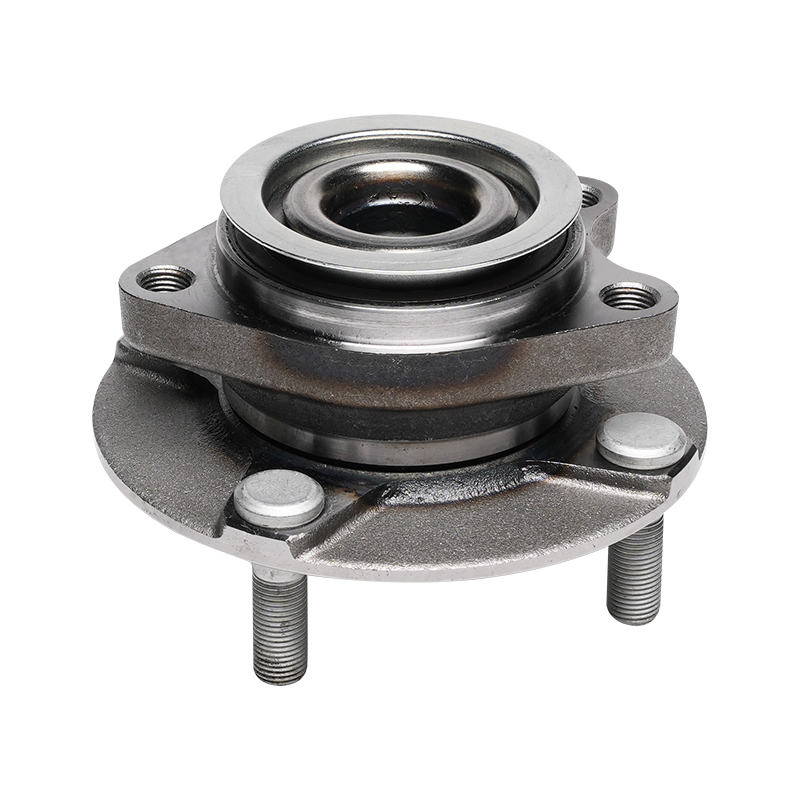

Wheel Hub Assemblies, also commonly known as wheel hub bearings, wheel hub assemblies or wheel hub units, are key components that connect the wheels to the vehicle's drive shaft. They are not only responsible for the rotation of the wheels, but also directly affect the performance of the vehicle's braking system and fuel economy. Wheel Hub Assemblies usually include preloaded and adjusted rolling bearings with two rows of rolling elements. The inner and outer rings are connected to the outer ring of the constant velocity joint by electron beam or laser welding to form a strong and compact whole.

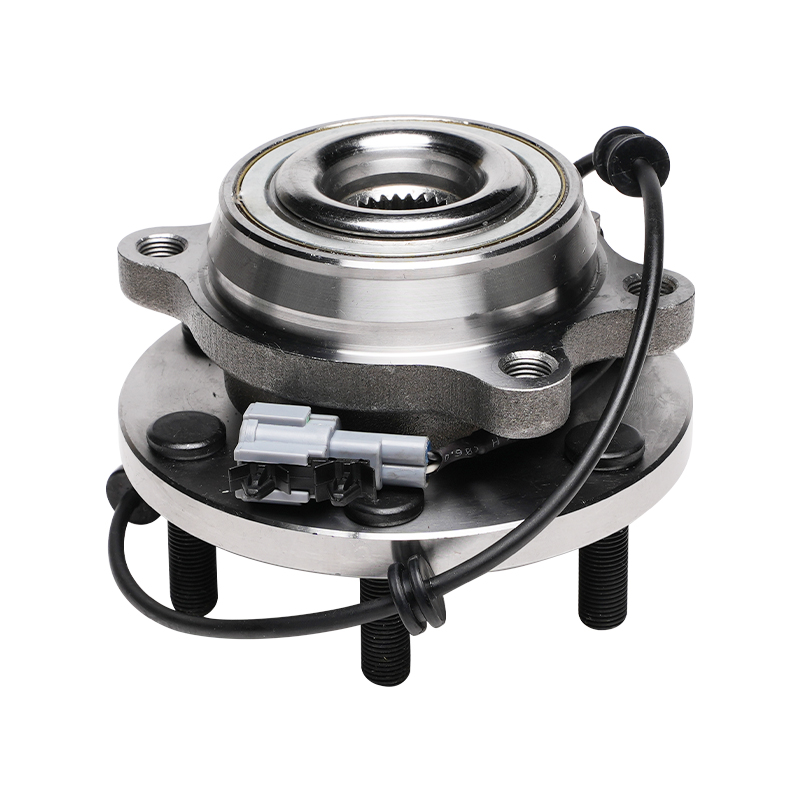

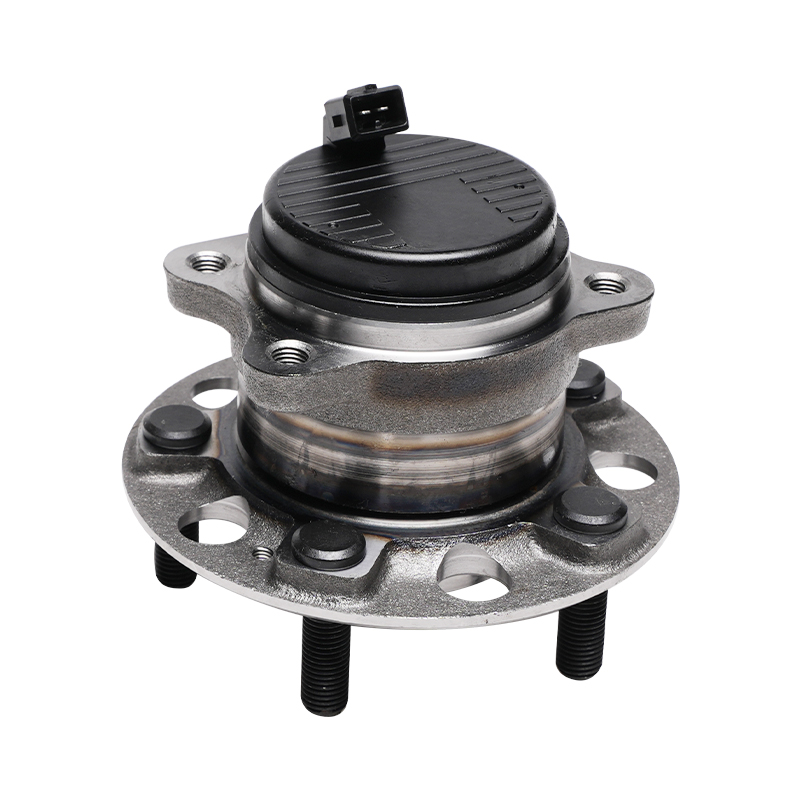

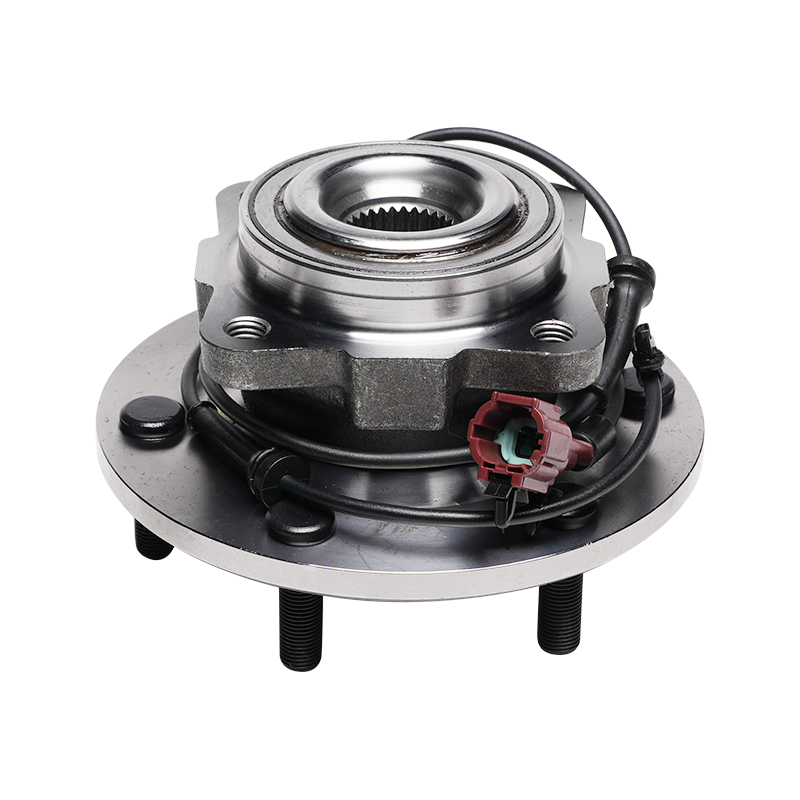

The main function of wheel hub assemblies is to enable the wheels to roll smoothly and ensure that the constant velocity joints correctly transmit torque to the wheels and make them rotate. They are also an important part of the vehicle's anti-lock braking system (ABS) and traction control system. The built-in speed sensor helps to accurately control the ABS. Therefore, wheel hub assemblies are not only part of the drive system, but also the cornerstone of traffic safety.

To find the wheel hub assembly, you first need to remove the car's wheels. The wheel hub assembly is located between the drive shaft and the brake drum or brake disc, and is bolted to the brake disc side and mounted to the steering knuckle from the drive shaft side. In some designs, the wheel hub assembly may be present as a bolt-on or press-fit assembly. To get a clearer view of the wheel hub assembly, the brake caliper and brake rotor need to be further removed.

Although wheel hub assemblies are designed to be durable and have a long service life (up to 400,000 kilometers for old vehicles and about 100,000 kilometers for new vehicles), they can still be damaged due to a variety of reasons, such as uneven roads, hitting potholes, severe bumps during high-speed driving, and water seepage due to wading. When there is a problem with the wheel hub assembly, there are usually some obvious signs, such as reduced braking performance, reduced steering wheel response, grinding, buzzing or squealing noises from the wheel hub, and the ABS warning light is on.

Regular maintenance of the wheel hub assembly is essential, especially in severe driving conditions. Inspecting and replacing damaged wheel hub assemblies not only improves driving safety, but also avoids greater repair costs caused by failures.
